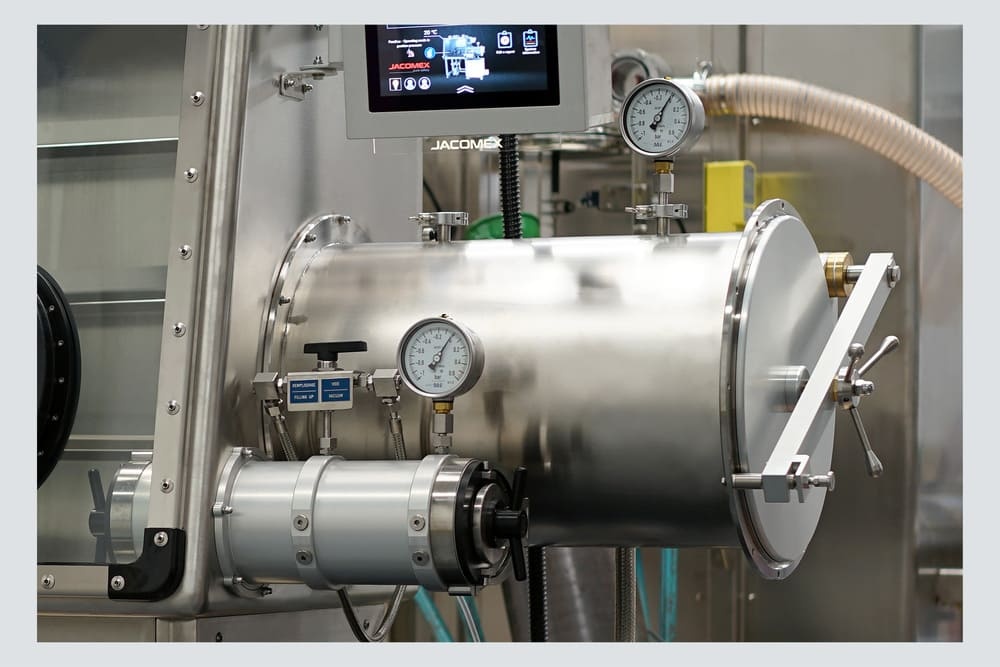

Cylindrical Vacuum Chambers

The standard design of vacuum chambers is cylindrical. These are double door airlocks with lockable closure. They allow for the transfer of samples, instruments, tools, components etc. without any loss of containment of the enclosure to which they are connected.

Vacuum airlocks are used exclusively on installations under controlled atmosphere (nitrogen, argon, helium), purified glove boxes, anaerobic enclosures or climatic glove boxes. For correct and safe use, the opening of a door should only be authorized after checking that the second door is closed. Their operation is based on vacuuming (thanks to a vacuum pump) and alternatively filling the chamber with gas in order to evacuate the air from the airlock.

The user has the choice of carrying out a variable number of successive empty/fill cycles in manual or programmable automatic mode to best eliminate all traces of atmospheric pollutants.

Applications

Energy
Laboratories and R&D
Pharmaceutical & Medical
Heavy Industry
Nuclear

For technical data and more information; please click here !
