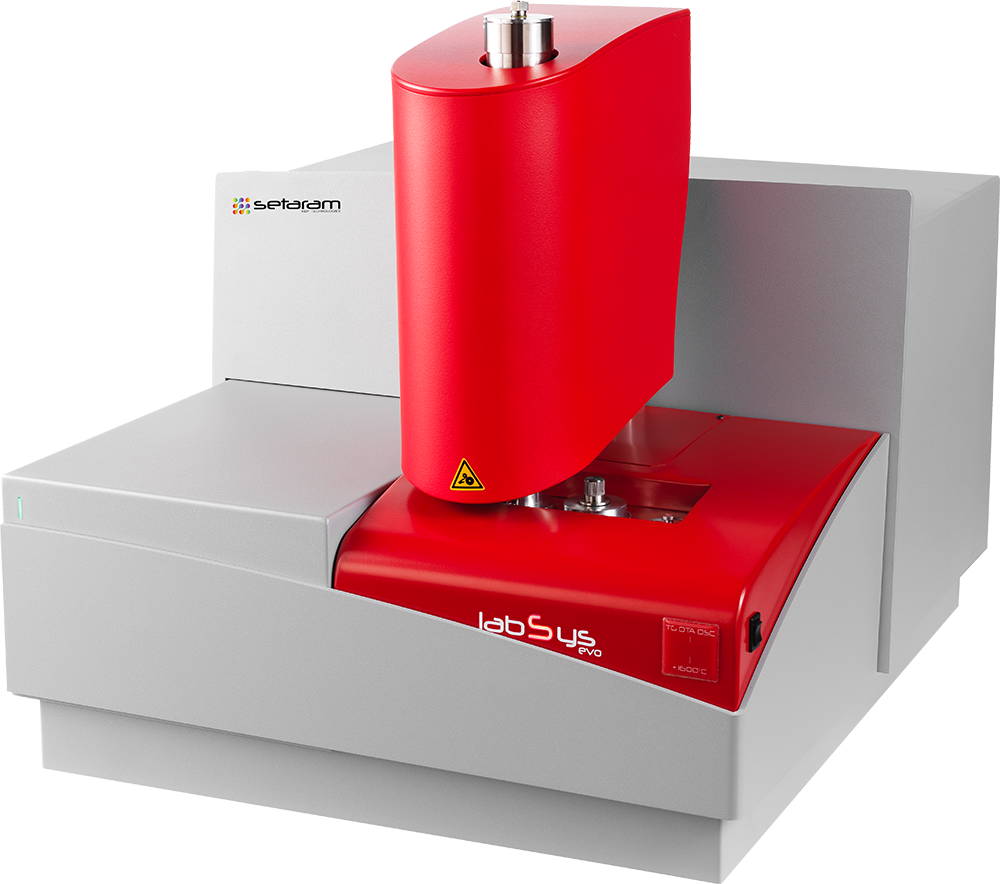

LABSYS EVO TGA/STA-EGA


TGA-EGA and Simultaneous STA-EGA, from ambient to 1150°C or 1600°C

LABSYS EVO TGA/STA-EGA
LABSYS EVO TGA/STA-EGA

THE HIGHLIGHTS

Simplicity of use: thanks to both an ergonomic design and the dedicated market leading Calisto software, LABSYS evo is user friendly and intuitive to operate – LABSYS evo offers a “Plug & play” gas analyzer coupling device,enabling simultaneous MS, FTIR or GC/MS connections.

Wide temperature range: TGA with simultaneous DTA or DSC measurement can be achieved for temperature up to 1 600 °C

New top loading balance: the unmatched stability, reproducibility and accuracy of this new balance offer unparalleled TGA data

NEW PARTS AND OPTIONS
Controlled vacuum option
This option allows for operation under controlled vacuum. One can manually set a controlled pressure down to 30 mbar. Evolved gas analysis by MS coupling is possible at the same time.

Quartz crucibles
DSC or DTA crucibles made of quartz are available.  The crucible’s volume is 100 µl, diameter 5 mm and height 8 mm.

Large volume crucible
A large volume 1000 µl (1 ml) alumina crucible, diameter 8mm and height 27 mm, is available for TGA experiments.

EVOLVED GAS ANALYSIS

LABSYS evo offers a “Plug & play” gas analyzer coupling device,enabling simultaneous MS and FTIR connections. The coupling device is heated up to 300 °C to avoid any gas condensation and is complete ly insulated for a safe handling.

LABSYS evo can be equipped with the state-of-the-art heated “Autoinjector” interface for TG-GC/MS experiments.

For more information; click here.
