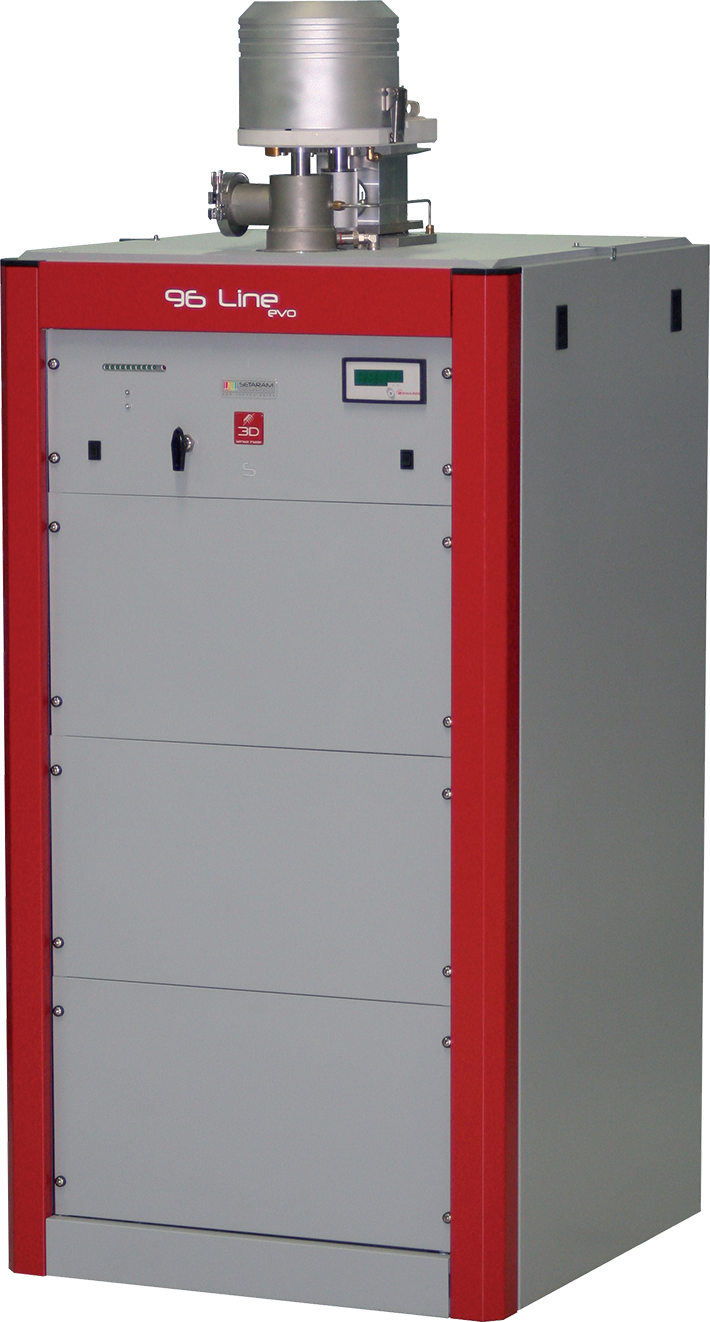

96 LINE TGA - DTA / DSC
Large volume & high temperature simultaneous TGA & DSC / DTA (ambient to 2000°C)
This is an extremely high performance weighing module used with the TGA 96. This balance can weigh samples up to 100 g and is well suited to measuring both micro-quantities of samples (a few milligrams) as well as large, dense samples while maintaining measurement resolution to within a microgram whatever the mass analyzed.
Simultaneous TGA-DTA/DSC measurements are available.
Simultaneous TGA-DTA:
- Ambient to 1600°C,
- Ambient to 1750°C,
- Ambient to 2000°C.
Simultaneous TGA-DSC:
- Ambient to 1500°C,
- Ambient to 1600°C.
NEW PARTS AND OPTIONS
Pierced alumina crucibles
Alumina based crucibles pierced with numerous orifices to improve sample / gas interactions are available. 18mL and 4.5mL versions are available.
FTIR coupling
A heated MS or FTIR 200°C coupling was designed for the TG96 line.
For more information; click here.
